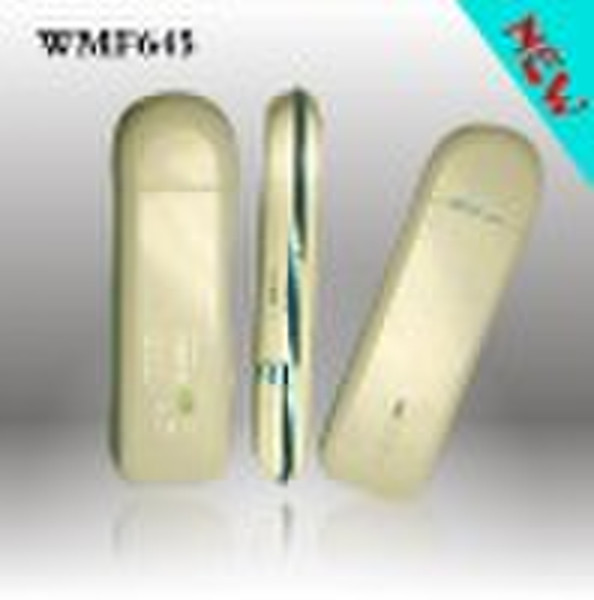

DVB-H USB DONGLE

DVB-H USB DONGLE FeatureDescriptionComplianceNotesDimensions93mm * 28.8mm * 12.9mm　　Weight37g　　PictureBitmap　　Form FactorUSB modem　　USB Interface TypeSimplfied USB-A (retractible)　　User manual　Optional　Quick guide　Yes　Warranty cards　Yes　EAN　Yescan be customizedTACTAC: 35330703 Serial Number Range: 000000 to 999999Yes　Chipset supplierQualcomm　　ChipsetQualcomm 6290　　ProcessorARM 9　　Processor speed (Apps)MSM6290:High-performance ARM926EJ-STM running at up to 297.6 MHz for 7.2 Mbps HSDPA　　USIM/SIMsupport SIM/USIM,standard 6 PIN SIM card interface,support 3V SIM card and 1.8V SIM cardYes　Memory(SDRAM/NAND)64MB/128M　Cost RelatedMICRO SD CardUp to 4GByte　　USB VersionUSB 2.0 HIGH SPEED　　InterfaceUSB　　Maximum power consumption2.5W　　Power supply5V/500mA　　LEDred _ turn on and not register green_ register to GSM/GPRS/EDGE green twinkling_ connect to GSM/GPRS/EDGE blue_ register to UMTS/HSDPA/HSUPA blue twinkling_ connect to UMTS/HSDPA/HSUPA　　ChipsetRTR6285/6280　RTR6285 for Receive DiversityReceive DiversitySupports UMTS 2100M Rx DiversityOptionalCost RelatedEqualization　Yes　Main AntennaInternal　　Receive Diversity AntennaInternalOptionalCost RelatedGSM Banda) GSM/GPRS/EDGE 850MHz: 824 849 MHz/869 894 MHz(Uplink/Downlink) b )GSM/GPRS/EDGE 900MHz: 880MHz 915MHz/925MHz 960 MHz(Uplink /Downlink) c) GSM/GPRS/EDGE 1800MHz: 1710MHz 1785MHz/1805MHz 1880MHz (Uplink/Downlink) d) GSM/GPRS/EDGE 1900MHz: 1850MHz 1910MHz/1930MHz 1990MHz(Uplink/Downlink)　Cost RelatedUMTS Banddefault: WCDMA/HSDPA 2100MHz Optional as below: WCDMA/HSDPA 1900/850MHZ 　Cost RelatedRxDiv Band2100MHzOptionalCost RelatedMax. transmitter powerWCDMA/HSDPA 2100MHz; +24dBm (Power Class 3) GSM/GPRS 850M/900MHz; +33dBm (Power Class 4) GSM/GPRS 1800MHz/1900MHz; +30dBm (Power Class 1) EDGE 850M/900MHz: +27dBm (Power Class E2) EDGE 1800MHz/1900MHz: +26dBm (Power Class E2)　　GSM/EDGE/WCDMAGSM CS:: UL 9.6kbps/DL 9.6kbps GPRS: Multi-slot Class 10 EDGE: Multi-slot Class 12 WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps　　HSDPA/HSUPA/HSPA+ HSDPA: DL 7.2Mb/s(Category 8) HSUPA:: UL 2.0Mb/s(Category 5) 　NOW support UL 5.76M3GPP ReleaseR6　　OSWindows XP (SP2 and later)Yes　Windows Vista (32bit)Yes　Windows Vista (64bit)Yes　Windows 7Yes　MAC (10.4 later)Yesnot support ISDB-T，DVB-H/T NOWLinuxOptionalCost Related,not support ISDB-T，DVB-H/TGPRS ClassClass B　　DVB-H　Yes　DVB-T　Yes　CMMB　No　RAS　No　NDIS　No　Voice　No　Video Call　No　SMS　Yes　MMS　No　STK　No　USSD　No　Phonebook　Yes　NETWORK LOCK　Optional　SIM READER　No　LanguageEnglish by default　　Online Update　NoCost RelatedCE　Yes　GCF　Yes　FCC　No　ROHS　Yes　WHQL　Yes　Operating Temperature-10 to 60° CYes　Storage Temperature-40 to 80° CYes　Humidity5% 95%Yes
